Solar / DC Integrated Solution For Telecom Power Supply IP55 SNMP Card Optional

Product Categories
Shenzhen Consnant Technology Co., Ltd.
Contact Now

Solar / DC Integrated Solution For Telecom Power Supply IP55 SNMP Card Optional

  • 1
  • 2

Brand Name : CONSNANT

Model Number : CNW48200

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200 pieces

Delivery Time : 15-21 days after deposit

Packaging Details : Standard Export Package

Solar System : Rectifier Module(1-4) MPPT Solar Charge Controller (1-6)

MPPT Range @Operating Voltage  : 60 ~115VDC

Protection : Overload, overcharge, polarity reversal(solar cell and battery)

LCD Panel : solar power, load level, battery voltage/capacity, charging current, and fault conditions

LED Display : Three indicators for solar, charging, and load status

Rated output current : 0-50A

Contact Now

Solar / DC Integrated Solution For Telecom Power Supply IP55 SNMP Card Optional

Key Features:

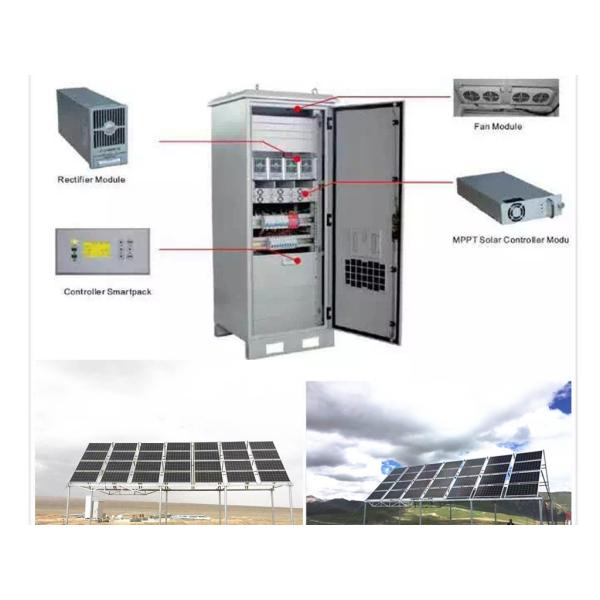

The solar integrated telecom power system system solution is equiped with pure sine wave inverter, built-in MPPT solar charge controller, built-in battery(optinal). The protection degree is IP55, protecting the device in poor environment greatly. Configurable input voltage range for home appliances and personal computers via LCD setting.

Our Service:

  1. 2% spares together with shipment for urgent issue.
  2. All of the necessary documents such as drawing, manual etc.
  3. We will provide the online service by mail
  4. You can get expert guides from us all the time. If you need, we can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.
  5. One year warranty

Specification:

CNW48200 Solar System

Rectifier Module(1-4)

MPPT Solar Charge Controller (1-6)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3200W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 48VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
AC input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m
